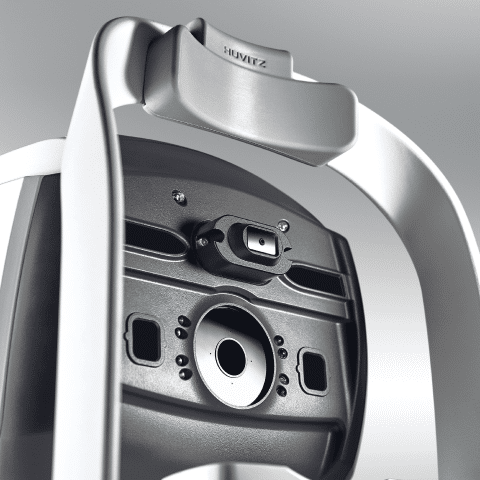

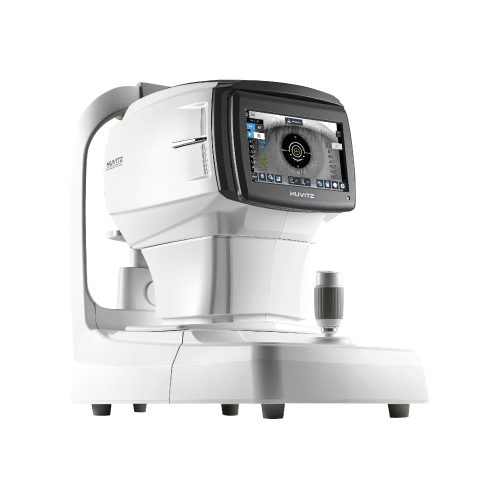

Huvitz HTR-1A  4 in 1

• Fully automated measurement, with manual override
• Auto Refraction
• Auto Keratometery – including peripheral
• Auto Tonometry
• Auto Pachymetry
• Plus – Dry Eye Observation

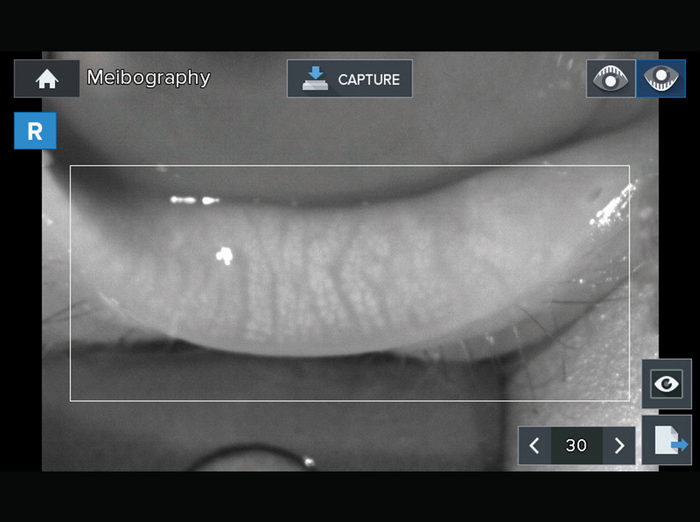

Observe the Meibomian Glands and TFBUT (Tear Film Break-Up Time) function can be utilized with tear film and dry eye diagnosis.

Wavefront Technology

Wavefront Technology is used for high order and low order aberration

Huvitz’s own Wavefront analyzing algorithm & Micro Lens Array provide accurate and reliable Refractometry data.

The user can monitor pre & post refractive surgery (Spherical Aberration) and analyze high order data in order to customized lens prescription.

High reliability of Kerato Data from Cornea Curvature can be acquired by minimizing measurement error using high-intensity Mire Ring & Two focus LED light sources.

Also, REF Data is provided with high accuracy by minimizing intervention of accommodative power.

Iris & Pupil Measurement (White to white)

By image capturing function, user can measure Iris & Pupil distance up to 14 mm. Also, minimum pupil measurement is supported up to 2 mm.

Zernike Map for Customized Lens

Zernike Map & Graph can be displayed in 2D & 3D so that users can easily understand Spherical, Cylinder, Axis and High order aberration data.

Wavefront Technology / Micro Lens Array Concept

Contact Lens Fitting & Auto Recognition Function;

Increasing Accuracy and User Convenience

Color View Mode –Users can utilize the color view mode for contact lens fitting and prescription.

Contact Lens Fitting Assistance –The guide automatically recognizes fitting condition by image processing with fluorescence & cobalt blue filter.

Auto Calculation for Lens Base Curve Radius

It’s possible to capture & adjust contrast images while monitoring. In case of RGP lens, this function automatically calculates and shows Lens Base Curve data.

Also, users can evaluate Steepness & Flatness after fitting hard lens.

Retro illumination Mode –Users can check the eye lens opacity or corneal damage.

SPH, CYL and AXIS measurement data can be acquired in order to utilize for eyeglass and contact lens prescriptions.

Huvitz HIIS SOFTWARE VIEWER

Huvitz px software solution.  Save’s and record’s patient data and examination results providing a complete patient report.
