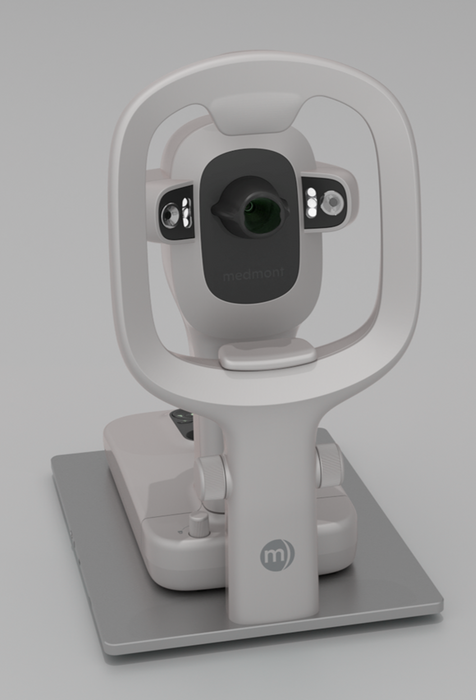

Medmont Meridia Vantage
)
)
)
)
The Vantage Advantage:
Future-ready. User-friendly. Built for every eye—and your bottom line.
All-in-one, no switching instruments: corneal and scleral coverage plus anterior diagnostics and imaging.
Gold-standard Medmont topography: trusted worldwide.
20mm × 18.5mm scleral capture: fast, automatic analysis for complex cases.
Future-ready features: expand your services and watch your ROI grow.
Intuitive design: minimal learning curve, maximum confidence.
Streamlined workflows: save time and see more patients more easily
Capture acquisition
Scleral topography capture
Asymmetric scleral shape
Corneal topography
Fluoroscein imaging
Anterior capture
Vantage anterior photo

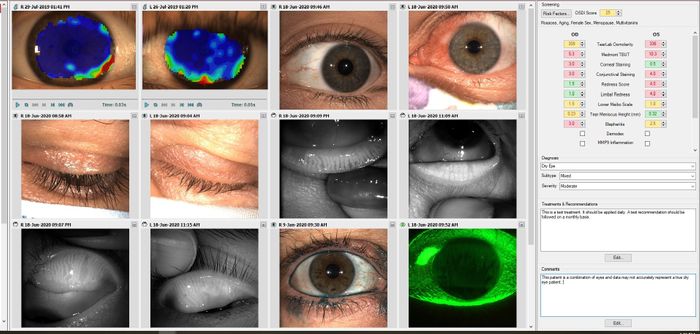

Vantage meibography
Scleral map
Against-the-rule scleral shape
With-the-rule scleral shape
Oblique scleral shape
Model Features
Classic / Professional / Vantage
Find the right advanced topographer model for your practice
Key Features Classic Pro Vantage Limbus-to-Limbus Topography Coverage
Ultra-Wide Field-of-View Optimized Depth of Field Focus High Resolution Digital Color Imaging Horizontal Visible Iris Diameter (HVID) Measurement Ergonomic Quick Keys on Instrument Contact Lens Simulator Direct Data Export to Contact Lens Design Software Anterior Segment Imaging and Video Meibomian Gland Imaging NaFl Imaging and Video Tear Meniscus Height Measurements Focus Guidance Aid Universal Imaging Grading Scales (EFRON, BHVI, Meiboscale) Dry Eye Patient Screening Reports Scleral Topography (20mm x 18.5 single capture) Scleral Lens Simulation Refined Ergonomics Built-in Calibration Object Vantage Performance Specifications
- Coverage: Standard: 0.25 –11mm TCC (Composite): Limbus to Limbus Extrapolated Data Point Coverage: Limbus to 18mm
- Field of View: Topography: 17.5 mm (H) Fluorescein: 20.0 mm (H) Anterior Image: 26.0 mm(H) Meibomian Image: 26.0 mm (H)
- Power Range: 10-100 diopters
- Number of Rings: 32
- Accuracy and repeatability:
- Corneal topography: <.01 diopter
- Scleral topography: -10um accuracy @ 15.9mm chord
- Calibration object:
- Corneal Topography R8.000mm +/- 0.001mm
- Scleral Topography R12.700 +/- 0.005mm; calibration accuracy +/- 0.001mm
- Eye level adjustable rating: 386 nominal – 23mm to +15mm ±2 mm
