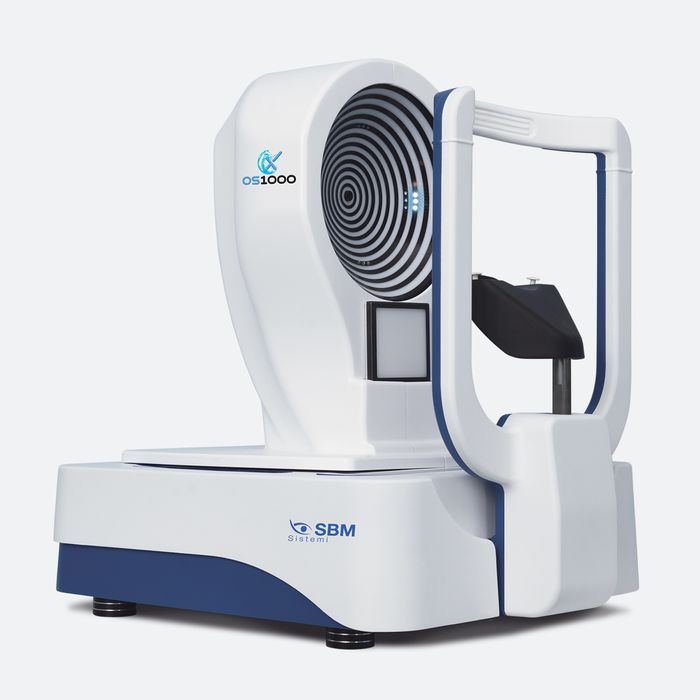

OS1000 X Automated Topographer + Dry Eye Analyser
)
)
)
)
)
)
- Fully automated corneal topography and dry eye analysis
- TFOS DEWS III-aligned diagnostic workflow
- Objective, repeatable and delegation-friendly
- Advanced meibography including 3D and transillumination
- Comprehensive reporting and patient follow-up tools
Advanced Corneal Topography
OS1000 X performs high-precision Placido-disk corneal
topography, supported by an AI-based image upscaling algorithm that enhances
the analysed image resolution to 23 megapixels, improving measurement accuracy
and repeatability.
Topography capabilities include:
- Keratometric data (K-readings, Sim-K, indices)
- Keratoconus screening and follow-up
- Differential and comparative maps (up to 4 exams)
- Altimetry and elevation maps
- Zernike analysis (up to 7th order)
- Aberrometry and visual acuity simulation
- Multiple visualisation modes (single, quad, 3D)
These tools support refractive surgery screening, contact
lens fitting, and long-term corneal monitoring.
Complete Dry Eye & Ocular Surface Analysis
TFOS DEWS III ready - OS1000 X delivers one of the most comprehensive dry eye diagnostic suites available, aligned with TFOS DEWS III recommendations.
The system enables objective evaluation of:
- Tear film stability
- Lipid layer quality
- Tear volume
- Meibomian gland structure and function
- Ocular surface inflammation and redness
All key parameters are acquired automatically, providing
fast, consistent, and clinically meaningful results.
Non-invasive tear film assessment
Dry eye evaluation includes:
- Automatic NIBUT (first, average, map and dynamic graph)
- Tear film interferometry for lipid layer analysis
- Automatic tear meniscus height measurement using AI detection
These measurements support dry eye subtype classification,
helping differentiate between evaporative and aqueous-deficient dry eye.
Advanced meibography
OS1000 X provides high-resolution meibography using infrared
imaging, enhanced by transillumination technology to reveal gland structure and
functional abnormalities that may not be visible with standard imaging. Meibography features include:
- Standard infrared meibography
- 3D meibomian gland visualisation
- Transillumination for enhanced gland assessment
- Objective documentation for patient education
This detailed analysis supports therapy selection, including
procedures such as thermal and radiofrequency-based treatments, where
appropriate.
Additional Ocular Surface Assessments
The OS1000 X dry eye suite also includes:
- Blink quality and blink completeness analysis
- Bulbar and limbal redness classification
- Blepharitis evaluation
- Comparative grading using recognised international scales (Efron, CCLRU, Jenvis)
Together,
these tools provide a holistic assessment of ocular surface health.
Pupillometry & Contact Lens Support
OS1000 X also supports:
- Dynamic pupillometry (photopic to scotopic transition)
- Measurement of pupil size, centration and reflex dynamics
- Support for multifocal, toric and specialty contact lens fitting
The integrated contact lens fitting module combines corneal
data with a large lens database, enabling:
- Simulated fluorescein imaging
- In-vivo and virtual fitting assessment
- Reduced trial lens use and improved first-fit success
Powerful reporting and patient communication
OS1000 X generates clear, structured, and highly visual
reports, supporting both clinical documentation and patient education.
Report options include:
- Daily exam reports
- Comprehensive multi-page dry eye reports
- Follow-up and comparison reports
- Treatment and therapy reports
The software includes:
- Customisable treatment databases
- Automatic and personalised treatment suggestions
- Structured dry eye management protocols

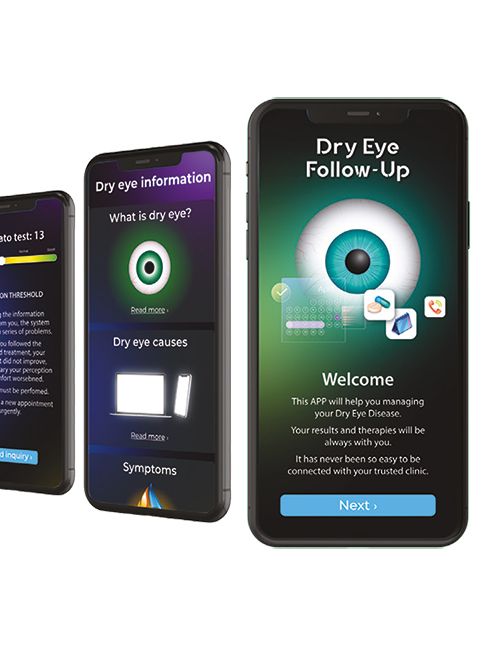

The Dry Eye Follow-Up smartphone app allows patients to:
- View exam results
- Receive treatment reminders
- Track progress over time.
