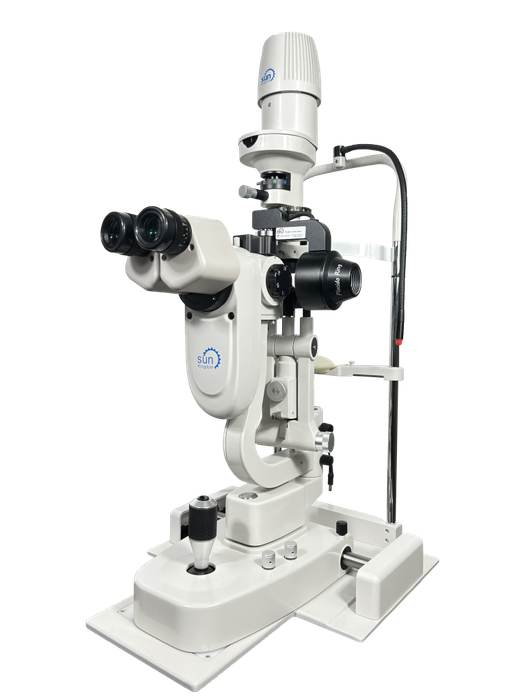

SK-MED SL-5C

Proven Haag Streit design

5 mag options up to 40x

20 Million pixels Camera (The highest of any in -line slit lamp camera). High depth of field supplemented by front diaphragm controller

Coaxial back ground light -variable

Imaging and archiving software included

Wide slit width – 0 to 14mm

Wide slit height – 1 to 14mm

Step-less variable LED light source

Integral yellow filter adaptor included

DA-1 Dry Eye Analyser

Fully comprehensive dry eye analysis

A comprehensive and professional dry eye examination and diagnosis program providing seven methods of dry eye detection functions to provide a reliable basis for clinical diagnosis

Multifunction – A full set of dry eye examinations can be completed in 7 minutes, effectively improving outpatient efficiency

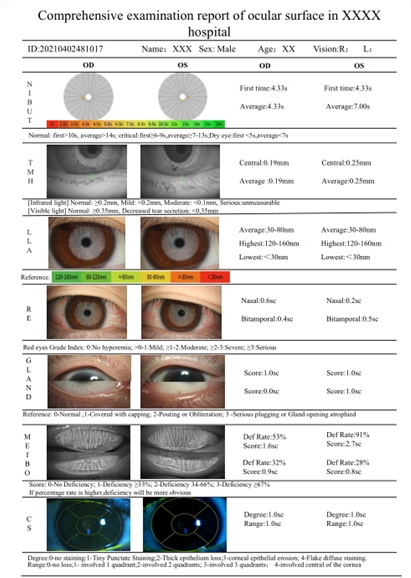

Detailed Dry Eye Test Report – The test report provides images and texts , the test results are clear and detailed helping doctors in recommending appropriate treatment

Non-invasive – Non-invasive inspection method, safer operation, improved patient comfort and promoting better patient cooperation

Automatic – Fully automated software analysis. Quantification of testing standards, for easier diagnosis by doctors

Convenient  – Patient management system, which continuously records and tracks the development of dry eye conditions

Accurate Grading – Internationally recognized grading scales

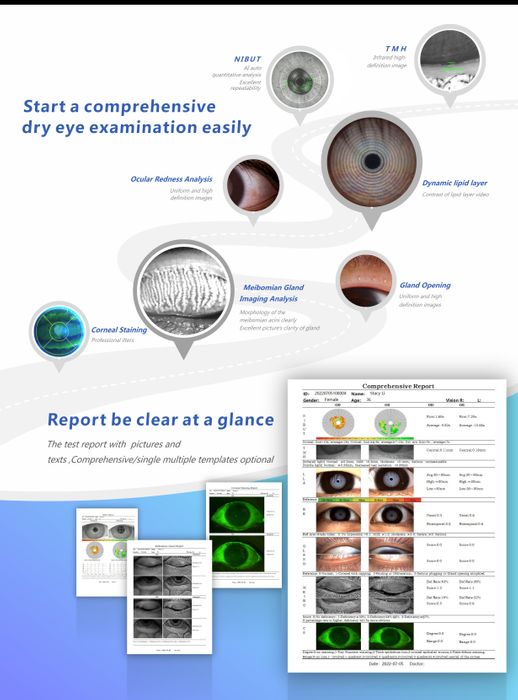

Main functions of dry eye module

Imaging Analysis – Automatically analyzes the deficiency rate and categorizes results for determining fast-track patient treatment pathways

• Gland Opening – HD eyelid image
• Ocular Redness analysis – HD eye surface image, automatically recognize blood vessels, automatic ocular redness analysis scoring
• Meibomian Glands Imaging analysis -Acinar-level HD image
• Corneal Staining Analysis – Professional fluorescent corneal stain image, automatic analysis
• Lipid Layer analysis – Uses a constant and uniform light source for detection. Provides the highest, lowest and average thickness values and provide automatic analysis
• TMH – Optional infrared light/ visible light measurement. Can provide central average TMH
• NIBUT – Provide first, average break-up time. Automatic analysis
