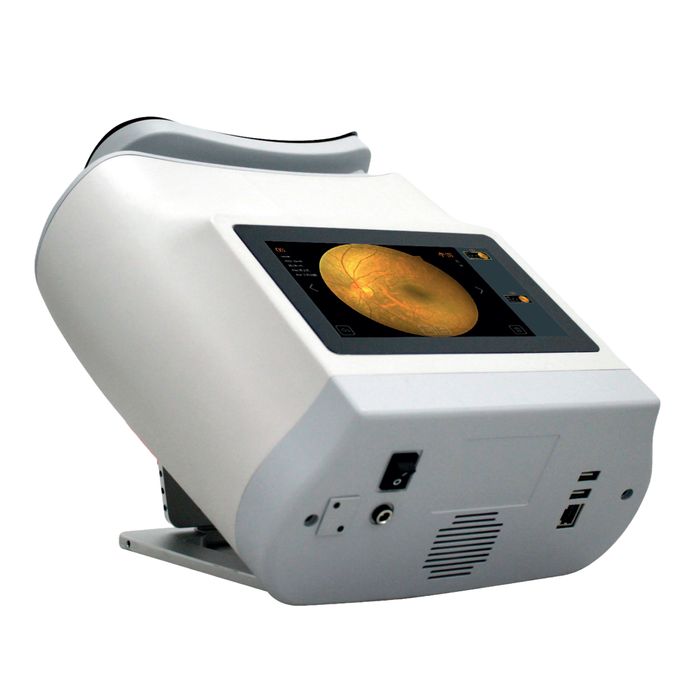

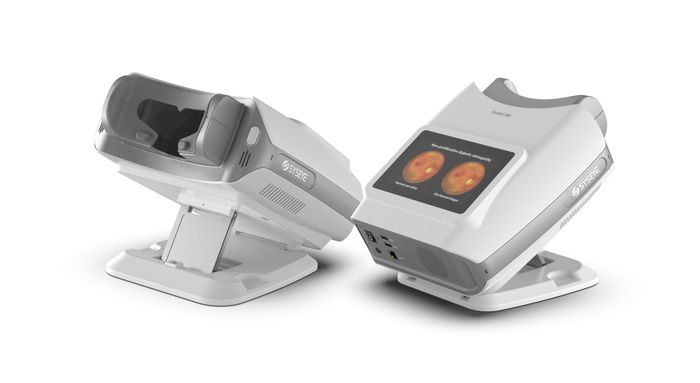

Kestrel 300 is a brand new, fully automatic, portable fundus camera with compact design, easy to carry features, fully automatic design, and user friendly operation. It comes equipped with a high definition image acquisition system that allows for easy uploading of images to the cloud. With the help of AI Technology, it enables artificial intelligence film reading and allows you to have access to an eye health expert anytime and anywhere.

Features

• Portability: Applies to any medical and health scene
• AI Intelligence: Self-service operation, artificial intelligence film reading.
• Fast: Complete a binocular examination in 30 seconds and provide immediate results.

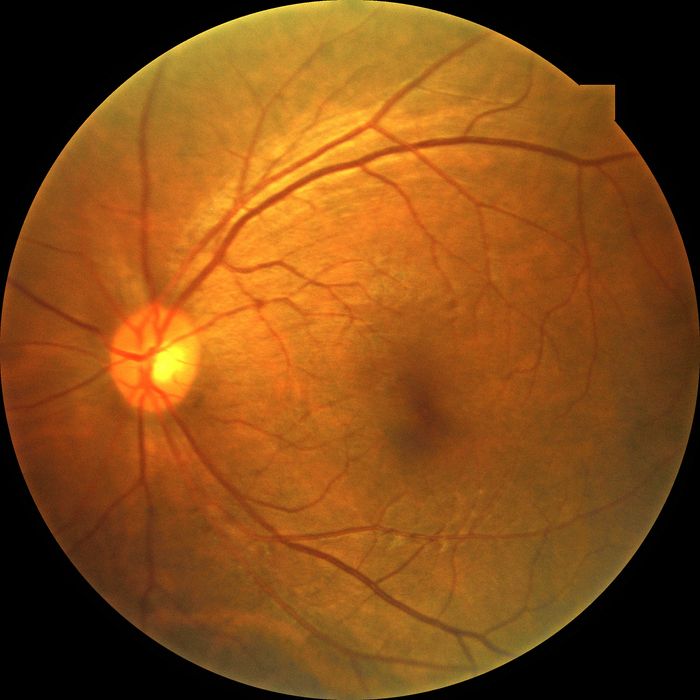

• High Definition: Provides high definition images with 20 million pixels.

Specification

---

Image Acquisition System

• Acquisition modes: Non-mydriatic / mydriatic
• Field of view: 50o
• Working distance: 15mm
• Minimum pupil size: ≥ 3.00mm
• Focus modes: Auto / Manual
• Exposure modes: Auto / Manual
• Operation: Auto / Manual
• Photography: CMOS
• Resolution: 20 megapixels
• Diopter compensation: ±15D
• Fixation: Internal Fixation
• Autofocus Assistance: Dual Camera
• DICOM 3.0: Yes
• Customization AI port: Yes

Others

• Dimensions: 284mm (L) x 306mm (W) x 145mm (H)
• Weight: 3.6 Kg
• Power Supply: 100-240V 50/60Hz
